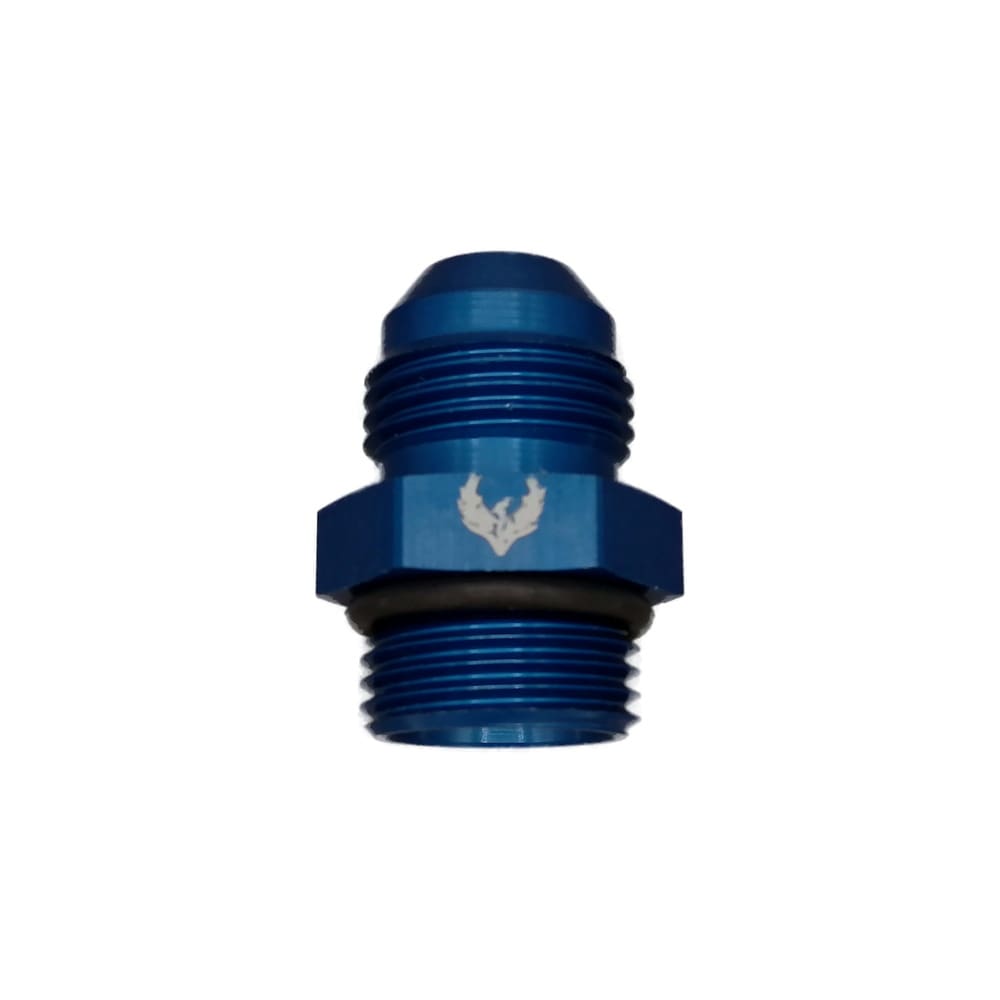

Compact AN to ORB -06 AN | -06 ORB
$8.47
| Finish | Blue |
|---|---|
| AN Size | AN -06 |
| ORB Size | ORB -06 |
In stock
Description
Compact AN to ORB -06 AN | -06 ORB. These compact fittings are for special applications where hex size and ORB thread length are restricted. Typical applications are mechanical fuel pumps and dry sump oil pumps. Mating surface must have an O-ring relief.
| SKU | Dimension A | Hex Size |
| D66-X | .400 | 7/8" |
| D661-X | .375 | 3/4" |
| D88-X | .500 | 1" |
| D881-X | .375 | 7/8" |
| D1010-X | .640 | 1-1/8" |
| D10101-X | .375 | 1" |
| D1212-X | .640 | 1-3/8" |
| D12121-X | .375 | 1-1/4" |
